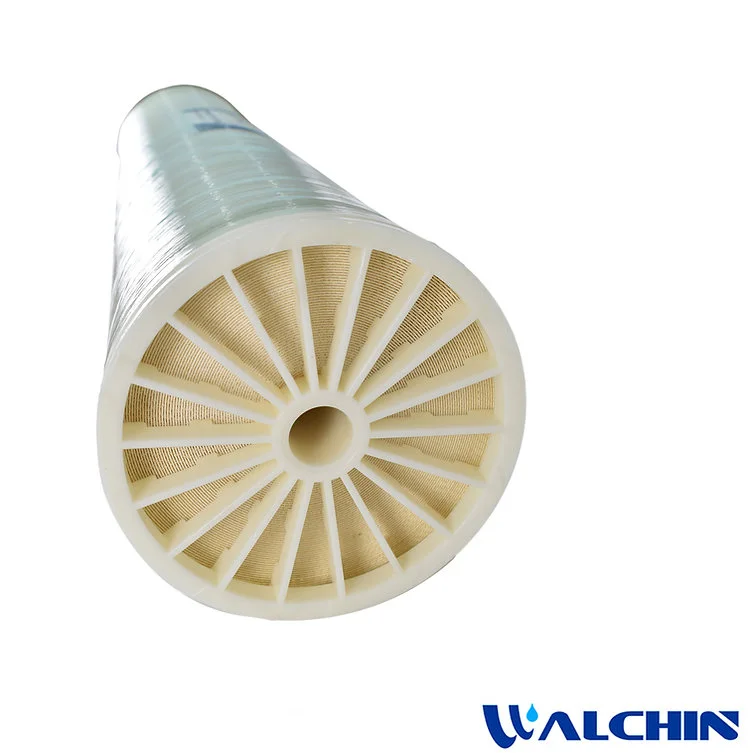

The Walchin Anti-Pollution Ultra-Low Pressure Series is designed for efficient desalination treatment of municipal tap water and groundwater with salt concentrations up to 2000mg/L. It is ideally suited for a variety of applications, including:
This membrane series is specifically engineered for low energy consumption, high efficiency, and improved anti-pollution capabilities, ensuring minimal downtime and reduced operational costs.
🔹 Customization Available! We offer OEM & bulk supply solutions tailored to your specific needs. Contact us via the Chat icon for more details.
Performance parameters
Model |
Membrane Type |
Membrane area/ft² |
Flow GPD(m³/d) |
Stable desalination rate/% |
TW-8040-FR |
Polyamide composite membrane |
365 |
10500(41.6) |
99.5 |
Water production floating range:±15%
Model/Size(mm) |
A |
B |
C |
D |
TW-8040-FR |
40.0(1016) |
1.05(26.7) |
7.9(201) |
1.125(29) |
Test conditions
Test solution concentration(NaCl) |
Water temperature(℃) |
pH |
Operating pressure psi(MPa) |
Recovery rate(%) |
1500ppm |
25 |
7.5-8 |
150(1.03) |
15 |
Operating Limits
Maximum working pressure |
600psi(4.14MPa) |
Maximum water inlet temperature |
45℃ |
Maximum water inlet flow |
75GPM(17m³/h) |
Maximum water inlet SDI15 |
5 |
Maximum residual chlorine concentration(mg/L) |
0.1 |
Inlet water pH range during continuous operation |
2-11 |
pH range of Inlet water during chemical cleaning |
1-13 |
Maximum allowable pressure drop of a single membrane element |
15psi(0.1MPa) |
