Optimized Water Treatment Solutions for Agricultural Irrigation
Walchin, a leading water treatment solutions company, specializes in designing customized irrigation water treatment systems to enhance agricultural productivity. Irrigation is the controlled application of water to soil using pumps, pipes, and sprays—essential for regions with irregular or insufficient rainfall.
However, many water sources contain high salinity (TDS) and contaminants, making them unsuitable for irrigation. Walchin’s advanced water treatment technologies transform poor-quality water into usable, efficient irrigation water, supporting optimal growth of vegetables, fruits, corn, and other crops.
Our R&D team analyzes your raw water quality and implements the most effective RO (Reverse Osmosis) and UF (Ultrafiltration) solutions tailored to your needs.

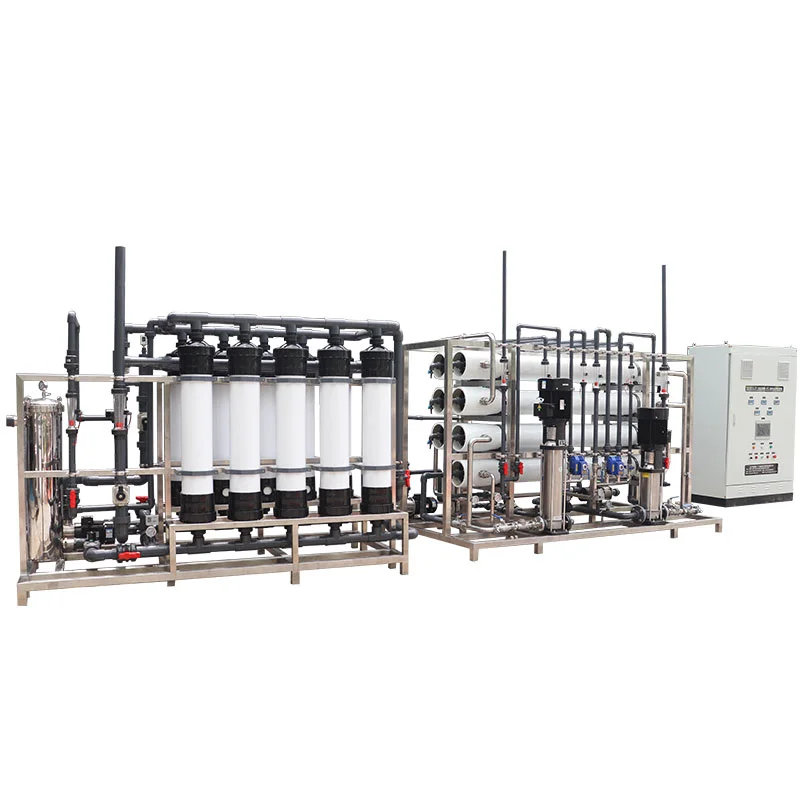

Irrigation RO & UF Filtration System Capacities
✔ Flow rates range from 2 m³/day to 7500 m³/day
✔ System design is customized based on raw water quality
✔ Options include UF membrane systems, RO filtration, and pretreatment
We provide specialized irrigation water treatment systems utilizing the latest advancements in water purification technology for agricultural applications.
Irrigation Water Treatment Process Flow
1️⃣ Booster Pump & Pretreatment
Water is first pumped from the source into pretreatment tanks, which vary in size depending on capacity requirements. Due to the high TDS levels commonly found in irrigation water, we typically use FRP or Carbon Steel tanks to prevent corrosion.
2️⃣ Pretreatment System
The pretreatment stage is essential for removing suspended solids, iron, turbidity, color, chlorine, sediment, organic matter, and odor. Our standard pretreatment process includes:
🔹 Sand Media Filter Tank – Removes large particles and sediments
🔹 Activated Carbon Filter Media Tank – Eliminates chlorine, taste, and odor
🔹 Softener Tank (Ion Exchange Resin) – Reduces water hardness to prevent scaling
For some applications, activated carbon and softener tanks may not be necessary. Our water treatment solutions are flexible, allowing us to customize the best system for your specific needs.
3️⃣ Cartridge Filter (Security Filter)
After pretreatment, water passes through a cartridge filter housing containing 1µm or 5µm PP filters, which remove any remaining fine particles.
✔ Standard Material: Stainless Steel 304 or 316
✔ For High Salinity Water: Carbon Steel, FRP, or PVC filter housings
In some cases, UF (Ultrafiltration) Systems are used instead of traditional pretreatment filters. UF removes larger particles and impurities but does not reduce TDS levels.
4️⃣ Reverse Osmosis (RO) Filtration
Water is then pressurized through membrane vessels using a high-pressure pump.
✔ Membrane Brands: DOW Filmtec, Toray, Vontron, Hydranautics, LG
✔ Membrane Sizes: 4040 or 8040 (depending on system capacity)
RO membranes filter out contaminants larger than 0.001µm, including:
✔ Dissolved salts
✔ Bacteria & viruses
✔ Organic & inorganic matter
✔ Proteins, sugars, and dyes
For Brackish Water Desalination Systems, we integrate chemical dosing (antiscalants, antifouling agents, pH control) to prevent membrane scaling and fouling.
5️⃣ Clean-In-Place (CIP) System (Optional)
To extend membrane life, we offer an optional CIP (Clean-in-Place) system that periodically cleans the membranes, ensuring consistent performance and long-term reliability.
Key Components of an Industrial Irrigation Filtration Plant
Component | Function | Material Options |
---|---|---|
Booster Pump | Feeds raw water into the system | CNP/Grundfos/Danfoss |
Pretreatment Tanks | Remove sediments, chlorine, and hardness | FRP/Carbon Steel/SS304/316 |
Cartridge Filter Housing | Provides additional filtration | Stainless Steel 304/316, FRP, PVC |
RO Membranes | Remove dissolved salts and contaminants | DOW/Toray/Vontron/Hydranautics |
High-Pressure Pump | Drives water through membranes | CNP/Grundfos/Danfoss |
CIP Cleaning System (Optional) | Extends membrane lifespan | SS304/FRP/316 |
Post-Treatment Options | Sterilization & pH adjustment | UV/Ozone Generator/Chemical Dosing |
Power Requirements for Industrial Irrigation RO Systems
✔ Voltage: 220-380V / 50Hz / 60Hz (varies by system size)
✔ Larger capacities require 380V due to high-pressure pump requirements
✔ Customizable power supply solutions available
Customization Options for Irrigation Water Treatment Systems
Standard Features | Available Upgrades |
---|---|
PLC Control System | Automatic Flush System |
Motor Starter | Ozone Generator |
Booster Pump | UV Sterilizer |
Stainless Steel Cartridge Filter | Chemical Dosing System |
FRP Membrane Housing | pH Control Monitor |
Low & High-Pressure Switches | ORP Control Monitor |
Liquid-Filled Pressure Gauge | Remote Control |
SS304/UPVC Piping | CIP Membrane Cleaning System |
Conductivity Monitors | Touch Screen Control |
Mitsubishi Processor | Tank Level Switch |
Why Choose Walchin for Irrigation Water Filtration?
🌍 Industry-Leading Expertise – Specialized in agricultural water treatment solutions
🔬 Advanced Technology – Cutting-edge RO, UF, and pretreatment systems
🛠 Custom Solutions – Tailored designs based on your water analysis report
💰 Cost-Effective & Energy-Efficient – Low operating costs with optimized recovery rates
⚡ Reliable Performance – High-quality components ensuring long-lasting operation
At Walchin, we provide flexible and fully customizable water filtration systems for irrigation, agriculture, and brackish water treatment.
📞 Contact us today for a consultation and let us help you find the perfect solution for your irrigation water needs!
