Industrial water treatment systems are essential across various industries, with the food and beverage industry being one of the largest consumers of industrial reverse osmosis (RO) water purification systems.
As a leading provider of industrial and commercial water treatment solutions, Chunke specializes in designing high-quality, efficient, and cost-effective purification systems tailored for food industry applications.
Water sources and raw water quality vary significantly. Chunke offers advanced Brackish Water Desalination Systems, Seawater Desalination Plants, and River & Lake Water Purification Systems—perfect for those who prefer not to use municipal tap water.
Why Choose Chunke for Your Industrial Water Purification Needs?
In the market, prices and quality for industrial water purification systems vary widely. At Chunke, we are committed to delivering the best quality at an affordable price.
As a trusted commercial water treatment provider, we offer customized solutions to optimize efficiency and reduce costs. With extensive experience in industrial water purification, we ensure that our reverse osmosis systems meet the highest industry standards.

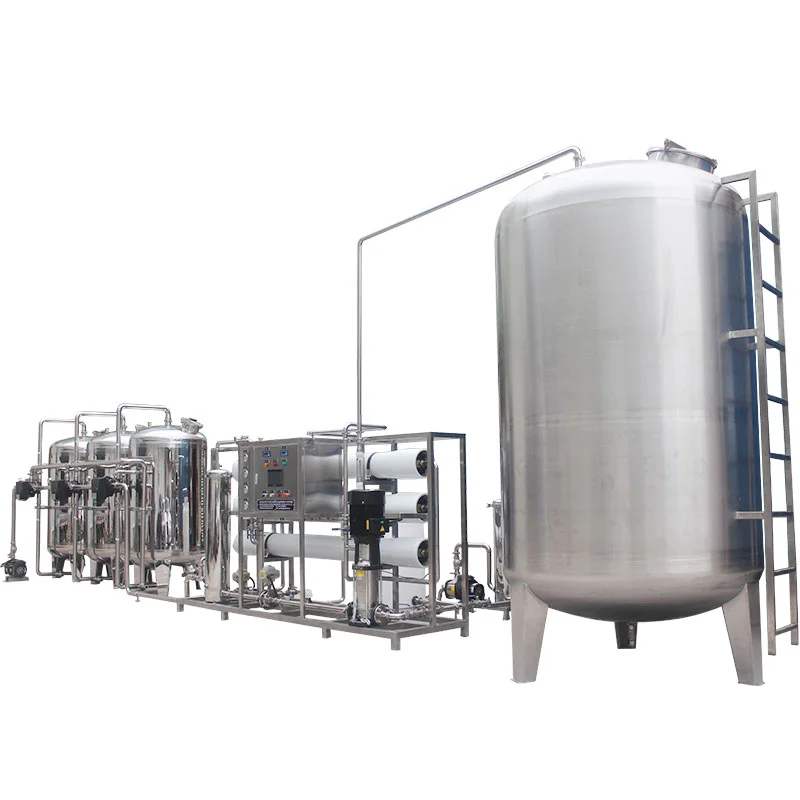

How Our Reverse Osmosis Industrial Water System Works
Our industrial water purification process is designed to maximize membrane lifespan and water purity.
๐น Raw Water Storage & Booster Pump → Moves raw water to the pretreatment stage
๐น Pretreatment Stage (Optional) → Includes:
- Quartz Sand Filter: Removes sediments and large particles
- Activated Carbon Filter: Eliminates chlorine, odor, and organic contaminants
- Water Softener: Reduces hardness and prevents scale buildup
๐น Cartridge Filter Housing → Further filtration before RO
๐น High-Pressure Pump → Pushes water through the RO membranes
๐น Reverse Osmosis Membranes → Removes dissolved ions, bacteria, and heavy metals
๐น Post-Treatment (Optional): - UV Sterilization: Eliminates bacteria and viruses
- Ozone Generator: Provides additional disinfection
- Polishing Filter: Enhances water quality
This ensures safe, high-purity water for industrial applications.
Technical Specifications – Food-Grade RO Industrial Water System
For raw or well water with TDS up to 20,000 ppm, our industrial RO systems include:
| Component | Brand | Material | Function |
|---|---|---|---|
| Raw Water Pump | CNP/Grundfos/Danfoss | SUS-304/316 | Provides pressure |
| Quartz Sand Filter | Chunke | FRP/SS304/316/Steel | Removes sediments |
| Activated Carbon Filter | Chunke | FRP/SS304/316/Steel | Eliminates odor, chlorine & organic contaminants |
| Anti-Scalant Dosing System | SEKO | – | Prevents membrane scaling & fouling |
| Water Softener | Chunke | FRP/SS304/316/Steel | Reduces water hardness |
| Security Filter | Chunke | FRP/PVC/SS304/316 | Removes fine particulates |
| High-Pressure Pump | CNP/Grundfos/Danfoss | SUS-304/316 | Drives water through membranes |
| RO Membranes | DOW/Toray/Vontron/Hydranautics | FRP/SS304/316 | Removes dissolved solids, bacteria, and heavy metals |
| Control System | PLC | – | Automates system operation |
| CIP Cleaning System (Optional) | Chunke | SS304/FRP/316 | Cleans membranes |
| UV/Ozone Sterilization (Optional) | Chunke/USA | – | Eliminates bacteria & viruses |
| Ozone Generator (Optional) | Chunke | – | Disinfection for water storage |
Solving Arsenic Contamination in the Food & Beverage Industry
A major concern in the food and beverage industry is arsenic contamination. Arsenic is a highly toxic element found naturally in soil and rocks, contaminating water sources. Exposure to arsenic is linked to severe health risks, including cancer.
To ensure water safety, industrial and commercial water treatment companies must address this issue. Reverse osmosis technology is the most effective solution for filtering arsenic and other harmful contaminants from water supplies.
Why Choose Chunke’s Food-Grade Industrial RO Systems?
๐น Advanced purification technology to remove heavy metals, bacteria, and contaminants
๐น Customizable designs tailored for food and beverage industry needs
๐น Affordable pricing with premium quality components
๐น Integration with production lines, including bottling and beverage processing
๐น Comprehensive support & maintenance services
Our RO purification systems help preserve the integrity of proteins and enzymes in food production by eliminating contaminants without the need for excessive heating processes.
Get the Best Industrial Water Purification System for Your Business
Before purchasing an industrial water system, explore Chunke’s tailored solutions for food & beverage water purification. Contact us today to learn how we can help you achieve high-quality, safe, and purified water at the best price!
