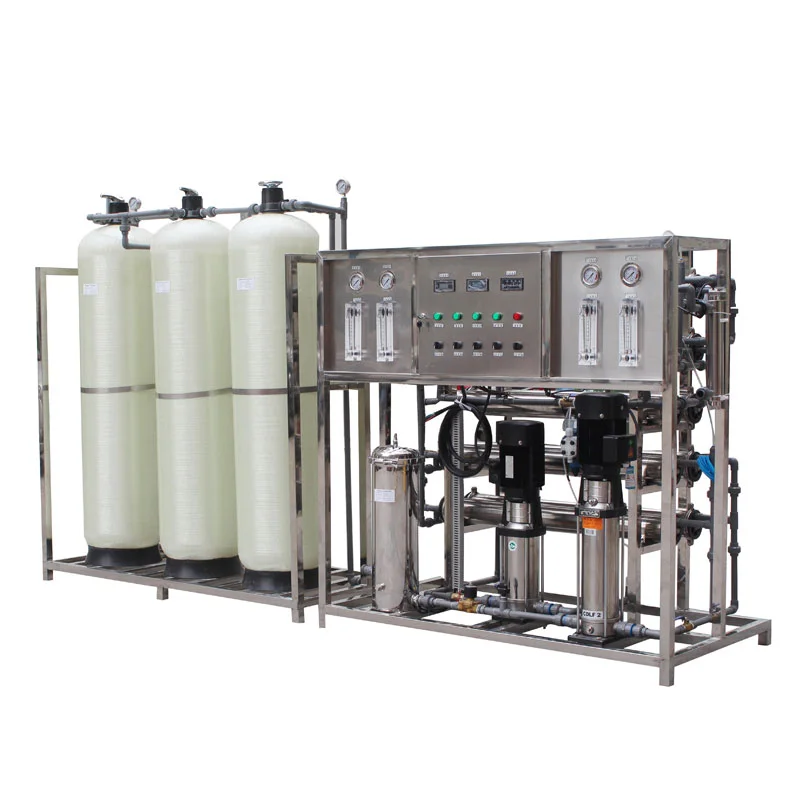

Walchin, a leading water treatment manufacturer, offers advanced desalination solutions for saltwater problems with our Commercial Salt Water Desalination Systems. These systems have a capacity range between 2m³/hour to 48m³/day, designed to deliver high-quality purified water from brackish or seawater sources. For larger needs, we also provide Industrial Brackish Water Treatment Solutions.
Our systems use cutting-edge Reverse Osmosis (RO) technology to provide you with clean, safe water by removing high levels of Total Dissolved Solids (TDS), salts, bacteria, and other contaminants. Chunke focuses on sustainability, cost-effectiveness, and innovation to offer the best solutions for saltwater desalination.
Key Features:
โ
Pretreatment System – Includes sand media filters, activated carbon filters, and softener tanks for the removal of suspended solids, chlorine, and organic contaminants
โ
Membrane Technology – DOW Filmtec, Toray, Vontron, Hydranautics, LG membranes ensure efficient removal of contaminants with over 99% rejection rate
โ
CIP System (Clean in Place) – Extends membrane lifespan by automatically cleaning membranes, reducing maintenance costs
โ
Chemical Dosing Options – Includes antiscalant, antifouling, pH adjustment, and disinfection chemicals
โ
Flexible Pump Options – Choose from Grundfos, Danfoss, CNP, or Chunke high-pressure pumps to meet your needs and budget
โ
Energy Efficient Design – Energy-saving technologies to reduce operational costs while maintaining high-performance standards
โ
Durable Construction – FRP, Stainless Steel 304/316, and Carbon Steel for corrosion resistance
Technical Specifications:
๐น Feed Water TDS: >1000 ppm
๐น Max Feed Water Temperature: 42°C
๐น Operating Pressure: 1.5 to 6 bar
๐น Max Iron Content: 0.05 ppm
๐น Max Silica Tolerance: 60 ppm
๐น pH Tolerance: 3 - 11
๐น Recovery Rate: Varies with TDS and system configuration
๐น Electrical Power: 220-380V/50Hz/60Hz
Applications:
๐จ Hotels & Resorts – Ideal for providing high-quality water for guests and operations
๐ข Marine & Offshore – Essential for ships, offshore platforms, and coastal businesses
๐ญ Industrial Operations – Used for cooling systems, industrial processes, and water recycling
๐ Community and Municipal Water Supply – Provides sustainable, large-scale desalination for urban and rural areas
Models of Commercial RO Desalination Systems:
| Model Number | Permeate Flow Rate (L/H) | Membrane Size | Quantity |
|---|---|---|---|
| CK-RO-100L | 100L | 4021 | 1-2 |
| CK-RO-250L | 250L | 4040 | 1-2 |
| CK-RO-500L | 500L | 4040 | 2-4 |
| CK-RO-1000L | 1000L | 4040 | 4-6 |
| CK-RO-2000L | 2000L | 4040 | 8-10 |
Things to Consider Before Purchasing:
- Pure Water Production Capacity – Determine based on L/day, L/hour, GPD
- Feed Water TDS and Raw Water Analysis – Prevent fouling and scaling
- Removal of Iron & Manganese – Required before water enters the membrane
- Total Suspended Solids (TSS) – Must be filtered out
- Silt Density Index (SDI) – Must be below 3
- Oil, Grease, and Chlorine Removal – Ensure no contaminants in the water source
- Electrical Power – Check the voltage and phase for compatibility
- Space Requirements – Ensure adequate space for system installation
Key Features of Commercial Brackish Water RO System:
- Programmable PLC Control
- Automatic Flush
- UV Sterilizer
- Ozone Generator
- Chemical Dosing System
- FRP Membrane Housing
- CIP Membrane Cleaning System
- Permeate Conductivity Monitor
- Touch Screen Control
- Remote Control Options
- Stainless Steel 304 Frame
Contact Us:
To learn more about our Commercial Salt Water Desalination Systems or Brackish Water Treatment Solutions, please contact us. Our sales and technical teams will provide you with tailored solutions to address your specific water treatment needs.
