As a specialized chemical engineering water treatment company, Chunke provides advanced industrial water treatment solutions for various chemical industry applications, including:

Chemical production
Paints & coatings
Polymers & plastics
Petroleum processing
Catalyst manufacturing
Detergents & disinfectants
Pigments & dyes

Our industrial water treatment processes enhance product quality, process efficiency, and sustainability, ensuring businesses meet industry standards while reducing operational costs.


Water Purification Technologies for the Chemical Industry

Chunke offers multiple high-efficiency water treatment solutions, including:

🔹 Reverse Osmosis (RO) – The most commonly used purification method in chemical manufacturing
🔹 Ultrafiltration (UF) – Removes suspended solids and high-molecular-weight compounds
🔹 Electrodeionization (EDI) – Ensures ultra-pure water by removing dissolved ions

These technologies help produce high-purity water, free from dissolved solids, organic matter, bacteria, and pyrogens, ensuring consistent water quality for industrial applications.


Industrial Reverse Osmosis (RO) Water Treatment Process

Chunke’s Reverse Osmosis industrial water treatment process utilizes semi-permeable membranes to separate and remove:

Dissolved solids
Organic contaminants
Pyrogens & bacteria
Sub-micron colloidal matter

How it works:
1️⃣ Feed water is pressurized (up to 16 kg/cm²) and passed through RO membranes
2️⃣ Purified water passes through the membrane pores
3️⃣ Impurities & contaminants are concentrated and flushed as waste

Our RO systems achieve up to 99% removal efficiency, ensuring the highest water purity standards.


Industrial Water Purification System Process Flow

Our industrial water purification systems are engineered for efficiency, reliability, and longevity:

1️⃣ Raw Water Intake → Pumped from storage tank to pretreatment system
2️⃣ Pretreatment (Optional) Includes:

  • Quartz Sand Filter – Removes sediments & large particles
  • Activated Carbon Filter – Eliminates chlorine, organic matter & odor
  • Water Softener – Reduces hardness to prevent scaling
    3️⃣ Cartridge Filter → Provides final filtration before RO system
    4️⃣ High-Pressure Pump → Delivers feed water to RO membranes
    5️⃣ Reverse Osmosis Membranes → Removes ions, bacteria, & organic contaminants
    6️⃣ Post-Treatment (Optional):
  • UV Sterilizer – Kills bacteria & viruses
  • Ozone Generator – Disinfects water
  • Water Polisher – Enhances final water quality

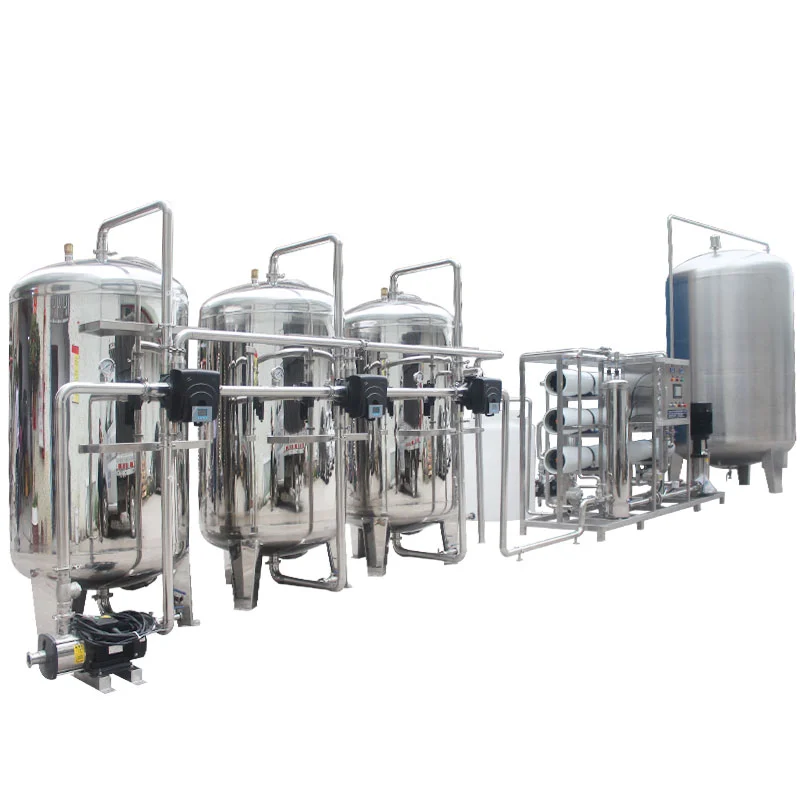

Technical Specifications – Industrial RO Water Purification System

Designed for Raw/Well Feed Water with TDS up to 20,000 ppm

Component Brand Material Function
Raw Water Pump CNP/Grundfos/Danfoss SUS-304/316 Provides water pressure
Quartz Sand Filter Chunke FRP/SS304/316/Steel Removes sediments
Activated Carbon Filter Chunke FRP/SS304/316/Steel Eliminates odor, chlorine & organics
Anti-Scalant Dosing System SEKO Prevents scaling & fouling
Water Softener Chunke FRP/SS304/316/Steel Reduces water hardness
Security Filter Chunke FRP/PVC/SS304/316 Removes colloidal particles (>1µm)
High-Pressure Pump CNP/Grundfos/Danfoss SUS-304/316 Drives water through membranes
RO Membranes DOW/Toray/Vontron/Hydranautics FRP/SS304/316 Removes dissolved ions, bacteria & organics
Control System PLC Automates system operation
CIP Cleaning System (Optional) Chunke SS304/FRP/316 Cleans membranes
UV/Ozone Sterilization (Optional) Chunke/USA Kills bacteria & viruses
Ozone Generator (Optional) Chunke Disinfection for water storage

Key Advantages of Chunke’s RO Industrial Water Purification Systems

Minimal Civil Work Required – Quick installation with minimal disruption
Compact & Space-Saving Design – Small footprint for industrial use
Plug-and-Play Installation – Easy setup and operation
Premium Components – Includes Grundfos pumps & DOW Filmtec membranes
High Recovery Rate – Maximizes water efficiency
Energy & Cost Savings – Low power & chemical consumption


Why Choose Chunke for Chemical Industry Water Treatment?

With 20+ years of experience in chemical engineering water treatment, Chunke provides:

Custom-Designed Solutions – Tailored to your industry needs
Expert Engineering Support – Backed by a team of technical specialists
High-Quality, Cost-Effective Systems – Affordable & sustainable
Advanced Water Purification Technologies – Ensuring compliance with industrial quality standards

For a reliable and efficient industrial water purification system, contact Chunke today and let us help you find the perfect solution for your chemical industry needs!
